| 構造上の利点: | 二重水平ワイヤー補強により剛性を強化 | 調達のメリット: | 現場での労力と時間を削減するための事前に組み立てられたパネル |
|---|---|---|---|
| 材料: | 溶融亜鉛メッキ鋼板・塩ビメッキ鋼板・ステンレス鋼 | 線径: | 3.0 mm – 5.0 mm (プロジェクトごとにカスタマイズ可能) |
| メッシュアパーチャ: | 50×200 mm、100×200 mm (その他のサイズもご要望に応じて) | パネル寸法: | 2.0×2.0m、2.5×2.0m、カスタムサイズも承ります |
| コーティング: | HDG / PVC コーティング (厚さオプション) | 典型的なアプリケーション: | 境界警備、工業用地、公園、スポーツ施設 |
| ハイライト: | double loop wire fencing panels,easy install wire fencing,long service life fencing |
||

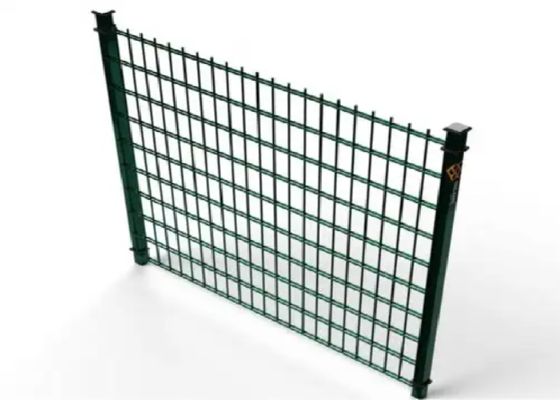

Robust Double Loop Wire Fencing Panels Easy Install Long Service Life
Double Loop Wire Fencing — Product Overview:
Double Loop Wire Fencing uses two continuous horizontal reinforcements welded across vertical wires to create a fence panel with improved stiffness and resistance to deformation. The double horizontal wires reduce deflection under load and support heavier posts and attachments (gates, anti-climb toppers). Panels maintain sightlines while delivering a firm barrier that is visually unobtrusive yet robust for long-term perimeter control.
Double Loop Wire Fencing — Materials & Performance:
Panels are manufactured from high-tensile steel wire, formed and welded to tight tolerances. Choose hot-dip galvanizing for general outdoor exposure or PVC coating for coastal/chemical environments where extra corrosion protection is needed. Typical wire diameters from 3.0–5.0 mm balance impact resistance with ease of handling. The welded intersections and dual horizontals ensure long fatigue life under repeated loads (wind, contact). Available finishes and gauges are selected to meet expected service life and maintenance budgets.
Double Loop Wire Fencing — Installation Steps (Detailed)
Layout & Marking: Mark post positions at 2–3 m centers; verify alignment and level.
Foundation & Posts: Excavate holes (typical 400–600 mm depth), set posts in concrete, maintain verticality; cure concrete 24–48 hours.

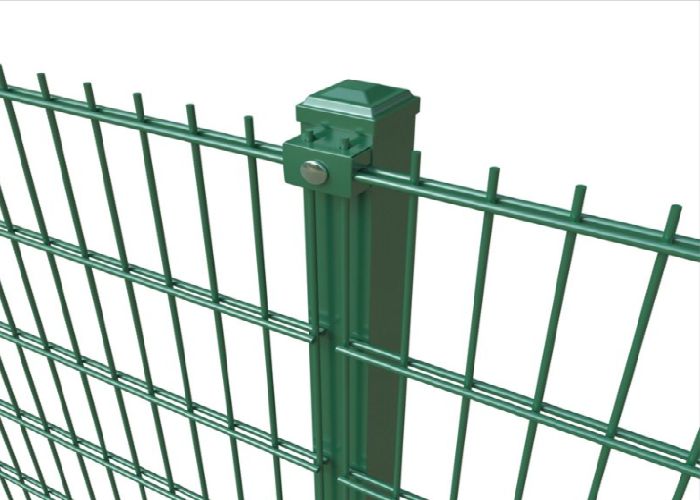

Panel Fixing: Fit pre-assembled panels onto posts using quick-mount clamps or brackets; begin at a corner or gate post and work sequentially.
Tension & Fastening: Ensure panels are plumb; tighten all bolts and fasteners to specified torque. Fit top rails, end caps, and any anti-climb or barbed accessories.
Inspection: Walk the perimeter, inspect fastenings and coatings, touch up any damage with zinc or polymer repair paint.
Double Loop Wire Fencing — Application Case Template
Project: Logistics Park Perimeter — 1.2 km
Specification: PVC Coated, 3.5 mm wire, 2.5×2.0 m panels, post spacing 2.5 m
Installation Duration: 10 days (10 installers)
Outcome: Rapid installation using pre-assembled panels; reduced excavation time; client reported simplified security operations and minimal maintenance after 18 months.
| Item | Typical Range |
|---|---|
| Wire Diameter | 3.0 – 5.0 mm |
| Panel Size | 2.0×2.0 m; 2.5×2.0 m; custom |
| Aperture | 50×200 mm; 100×200 mm |
| Coating | HDG / PVC (custom thickness) |
| Finish Lead Time | 7–21 days (qty dependent) |
Packaging & Delivery
Panels stacked and wrapped with protective film, bundled on wooden pallets; posts boxed separately. Export crates available for larger orders.
